S40C
Grade Introduction:
JISG4051 S40C steel, under JISG4051 standard, we can regard S40C carbon steel plate as high carbon steel.
S40C carbon steel is one mainly of high carbon steel, S40C has high strength and good machinability, cold plastic deformation of the medium, good weldability, after quenching and tempering after welding, heat treatment, no temper brittleness, but lower hardenability.
Bear the load for a small section of the larger pieces of quenched large normalizing or stress smaller parts and the Ministry of strength less demanding on the heart surface, hardening the surface wear parts, such as crankshafts, spindles, driveshaft, connecting rod, etc.
Grade Application
- Oil and Gas Pipeline
- Chemical Industry
- Plumbing
- Heating
- Oil & Gas Industry
- Water Supply Systems
- Paper & Pulp Industry
- Power Plant
- Fabrication Industry
- General-purpose applications
- Food Processing Industry
- Structural Pipe
- Heat Exchangers
- Also used for other industrial purposes etc.
Equivalent Grades
| S40C JIS G 4051 | Comparison of steel grades |
| DIN | 1C40 |
| AISI | 1040 |
| UNI 7846 | – |
| BS 970 | – |
| UNE 36011 | – |
| SAE J 403-AISI | – |
Our Supply Range
We supply to automotive ancillaries and OEM customers. The products we manufacture are used as input for manufacturing of automotive and general engineering components. These components are further assembled into systems fitted in automobiles and other engineering applications.

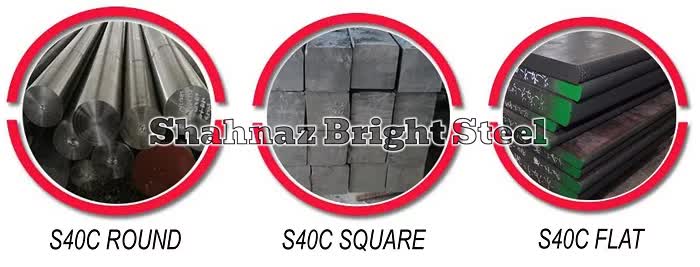

| Product Type | Size Range |
|---|---|
| Forged Round Bars | 140mm Dia to 850mm |
| Rolled Round Bars | 16mm Dia and above |
| Forged Flat Bars | Thickness: 32mm to 510mm, Width: 65mm to 1050mm |
| Rolled Flat Bars | Thickness: 6mm to 110mm, Width: 25mm to 510mm |
Chemical Composition
The following table shows the chemical composition of S40C steel:
| Element | C | Si | Mn | S | P | Cr | Ni | Cu |
| Content (%) | 0.37-0.44 | 0.17-0.37 | 0.50-0.80 | 0.025 | 0.025 | 0.25 | 0.30 | 0.25 |
Mechanical Properties
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation in 100-150 mm(%) | Reduction in Area | Hardness |
| S40C | ≥570 | ≥335 | ≥19 | ≥45 | ≤187HB |
Hardness
≤187HB
Thermal Properties
Coefficient of thermal expansion α – -> 1.32E-5 1/K at 20 °C
Physical Properties
| Physical Properties | Metric | Imperial |
| Density | 7.85 g/cm3 | 0.284 lb/in3 |
Density
Density – 7.85 g/cm3 – 0.284 lb/in3
