EN8M
Grade Introduction:
EN8M carbon steel (212M36) is a through hardening carbon manganese free-cutting steel, usually supplied untreated. This steel has good tensile strength. So it is often used in gears, shafts, stressed pins, studs, bolts, keys, etc.
EN8M carbon steel is a free-machining grade and is readily machinable in any condition. It can be further surface-hardened to produce components with enhanced wear resistance, typically to 50-55 HRC through induction processes. It is a free-cutting version of EN8M carbon steel made for easy machining.
Equivalent Grades
| USA | Japanese | Germany | British | France | International | Chinese |
|---|---|---|---|---|---|---|
| ASTM&AISI&SAE | JIS | EN DIN | EN BS | EN NF | ISO | GB |
| 1345 | SMnC443 | EN8M | EN8M | EN8M | —— | 45Mn2 |
Grade Application
- Gears
- Shafts
- Stressed pins
- Studs
- Bolts
- Keys

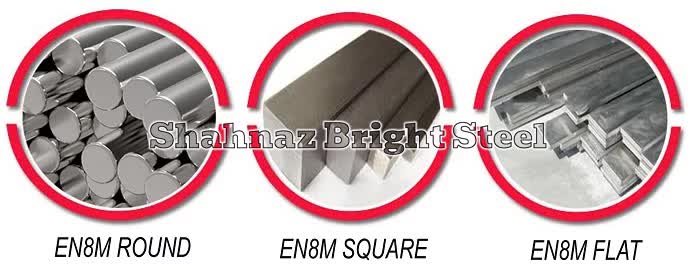

Our Supply Range
We supply to automotive ancillaries and OEM customers. The products we manufacture are used as input for manufacturing of automotive and general engineering components. These components are further assembled into systems fitted in automobiles and other engineering applications.
| Product Type | Size Range |
|---|---|
| Forged Round Bars | 140mm Dia to 850mm |
| Rolled Round Bars | 16mm Dia and above |
| Forged Flat Bars | Thickness: 32mm to 510mm, Width: 65mm to 1050mm |
| Rolled Flat Bars | Thickness: 6mm to 110mm, Width: 25mm to 510mm |
Chemical Composition
The following table shows the chemical composition of EN8M steel:
| Element | C | Si | Mn | S | P |
| Content (%) | 0.35 – 0.45 | 0.25 | 1.00 – 1.30 | 0.12 – 0.20 | 0.060 Max |
Mechanical Properties
| Max Stress | 700-850 n/mm2 | (up to 19mm LRS) |
| Yield Stress | 495 n/mm2 Min | (12% if cold-drawn) |
| Elongation | 16% Min | (up to 19mm LRS |
| Impact KCV | 28 Joules Min | HB |
| Hardness | 201-255 Brinell | J(minimum) |
| Charpy V-Notch Impact = Room Temp | 28 | — |
