C55MN75
Grade Introduction:
C55MN75 Carbon steels are steels having carbon as the major alloying element. They also contain up to 1.2% manganese and 0.4% silicon. In addition, residual elements like copper, molybdenum, aluminum, chromium, and nickel are present in these steels.
Grade Application
- Agricultural implements
- Heavy machinery components
- Wear-resistant parts
- Ring-rolling tools
- Battering tools
- Hand tools
- Springs
Our Supply Range
We supply to automotive ancillaries and OEM customers. The products we manufacture are used as input for manufacturing of automotive and general engineering components. These components are further assembled into systems fitted in automobiles and other engineering applications.

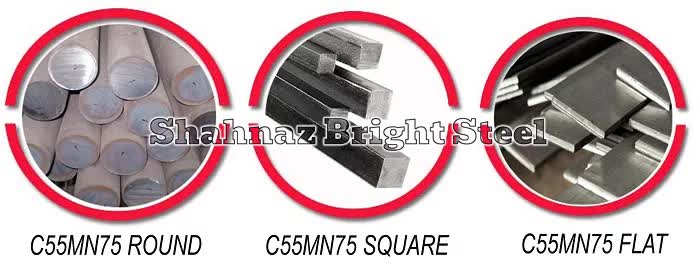

| Product Type | Size Range |
|---|---|

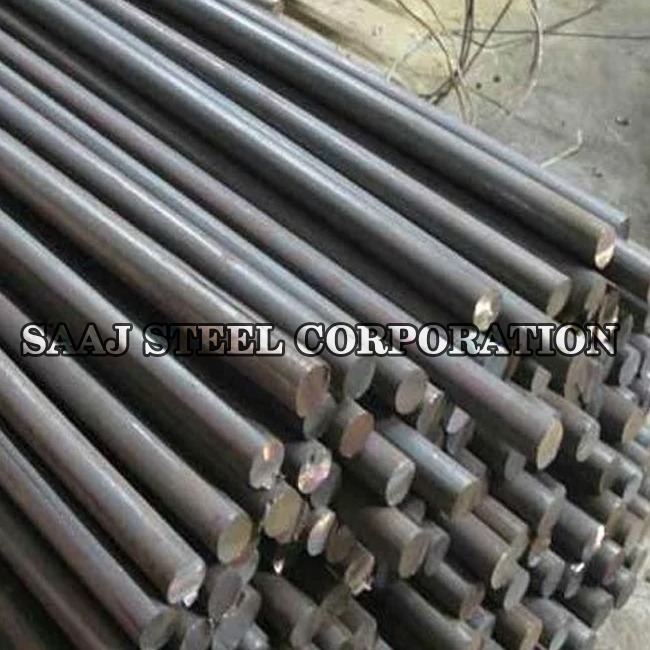

| Forged Round Bars | 140mm Dia to 850mm |
| Rolled Round Bars | 16mm Dia and above |
| Forged Flat Bars | Thickness: 32mm to 510mm, Width: 65mm to 1050mm |
| Rolled Flat Bars | Thickness: 6mm to 110mm, Width: 25mm to 510mm |
Mechanical Properties
| PROPERTIES | METRIC | IMPERIAL |
| Tensile strength, ultimate | 660 MPa | 95700 psi |
| Tensile strength, yield | 560 MPa | 81200 psi |
| Modulus of elasticity | 190-210GPa | 29700-30458ksi |
| Bulk modulus (typical for steel) | 140 GPa | 20300 ksi |
| Shear modulus (typical for steel) | 80 GPa | 11600 ksi |
| Poissons ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (in 50 mm) | 10% | 10% |
| Reduction of area | 40% | 40% |
| Hardness, Brinell | 197 | 197 |
| Hardness, Knoop (converted from Brinell hardness) | 219 | 219 |
| Hardness, Rockwell B (converted from Brinell hardness) | 92 | 92 |
| Hardness, Rockwell C (converted from Brinell hardness. Value below normal HRC range, for comparison purposes only) | 13 | 13 |
| Hardness, Vickers (converted from Brinell hardness) | 207 | 207 |
| Machinability (based on AISI 1212 steel. as 100 machinability) | 55 | 55 |
Physical Properties
| PROPERTIES | METRIC | IMPERIAL |
| Density | 7.85 g/cm3 | 0.284 lb/in3 |
Normalizing
Normalize at 1550° to 1625°F (843° to 885°C)
Annealing
Full anneal at 1525° to 1600°F (829° to 871°C) before furnace cooling process anneal at 1100° to 1225°F (593° to 663°C) after cold working
Density
| PROPERTIES | METRIC | IMPERIAL |
| Density | 7.85 g/cm3 | 0.284 lb/in3 |
Machinability
- Sulfured or chlorinated cutting oils for high-speed steel cutters
- No oil for carbide-tip tools
- Grind high-speed steel turning tools
- 8-12° side rake
- 6-10° back rake
- 7-9° side and end relief
- 12-16° side cutting-edge angle
- 8-14° end cutting-edge angle
- Nose radius 10% of cut depth
- Grind carbide-tip tools
- 6-12° side rake
- 2-8° back rake
- 6-10° side and end relief
- 8-12° end cutting-edge angle
- 8-16° side cutting-edge angel
- 1/32” nose radius
