C-50
Grade Introduction:
We have much experience in manufacturing DIN 17200 C50 carbon steel, We could give the fastest delivery time on the basis of our competitive price directly from our mill. if you need to know steel grade features, we can provide DIN 17200 C50 chemical composition and DIN 17200 C50 mechanical properties.

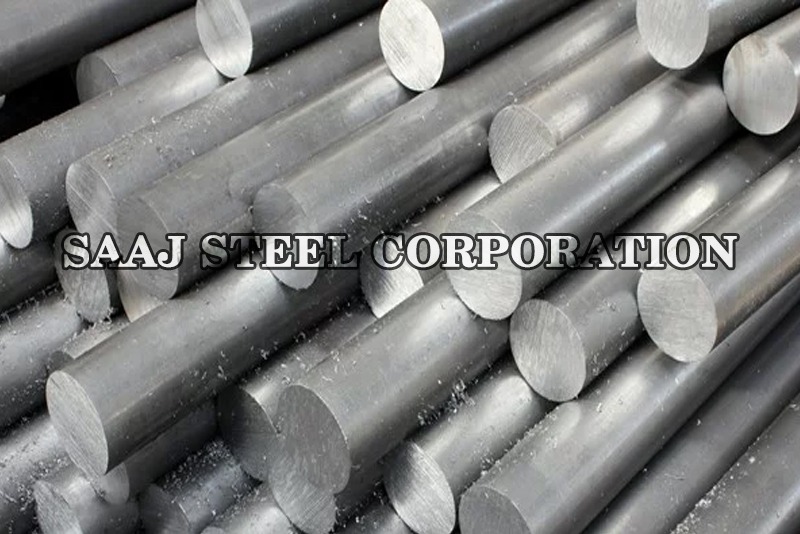

We can produce DIN 17200 C50 steel round rods. the strict control of DIN 17200 C50 steel chemical composition and DIN 17200 C50 steel mechanical properties. we have the control of professional engineers. We have advanced precision machining equipment, according to the requirements of users machining. in order to achieve the most satisfied with the user requirements.
Equivalent Grades
| Standards | Designation |
| ASTM | A510 |
Our Supply Range
We supply to automotive ancillaries and OEM customers. The products we manufacture are used as input for manufacturing of automotive and general engineering components. These components are further assembled into systems fitted in automobiles and other engineering applications.
| Product Type | Size Range |
|---|---|
| Forged Round Bars | 140mm Dia to 850mm |
| Rolled Round Bars | 16mm Dia and above |
| Forged Flat Bars | Thickness: 32mm to 510mm, Width: 65mm to 1050mm |
| Rolled Flat Bars | Thickness: 6mm to 110mm, Width: 25mm to 510mm |
Chemical Composition
The following table shows the chemical composition of C50 steel:
| Element | C | Si | Mn | P | S | Cr | Cu | Ni |
| Content (%) | 0.47 – 0.55 | 0.17 – 0.37 | 0.50 – 0.80 | 0.03 | 0.03 | 0.15 | 0.25 | 0.30 |
Mechanical Properties
| GRADE | Tensile Strength min | Yield Strength min | Elongation min. | contraction min | impact min | Hardness Max | |
| σb/M Pa | σs/M Pa | δ5/% | ψ/% | Akv/J | Without heating | annealing | |
| C50 | 630 | 375 | 14 | 40 | 31 | 241 | 207 |
Hardening
800-840oC/water, oil
Physical Properties
| Quality | Value | Unit |
| Thermal expansionThermal conductivity Specific heat Melting temperature Density Resistivity | 10 – 10 25 – 25 460 – 460 1450 – 1510 7700 – 7700 0.55 – 0.55 | e-6/K W/m.K J/kg.K °C kg/m3 Ohm.mm2/m |
Thermal Properties
| Quality | Value | Unit |
| Thermal expansion | 10-10 | e-6/K |
| Thermal conductivity | 25-25 | W/m.K |
