C-60

Grade Introduction:
C60 carbon steel is an unalloyed medium carbon engineering steel that has 0.57%-0.65% Carbon as per EN10083 standard. It has characteristics similar to that of C55 carbon steel which has high hardness and high strength after hardening. C60 is difficult to weld, and machinability is poor due to high carbon content. This steel is generally supplied in an untreated or normalized condition.

Grade Application

C60 carbon steel is an unalloyed heat treatable steel. It is mainly used for parts of mechanical and vehicle engineering. A typical application such as wheels, rims, toothed shafts, cylinders, shafts, axles, pins, screwdrivers, pliers, and similar items

Equivalent Grades

USA UK China Japan Australia
1060 070M60 60# S60C 1060

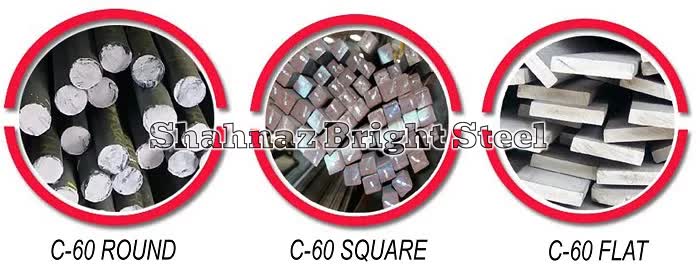

Our Supply Range

We supply to automotive ancillaries and OEM customers. The products we manufacture are used as input for manufacturing of automotive and general engineering components. These components are further assembled into systems fitted in automobiles and other engineering applications.

Product Type Size Range

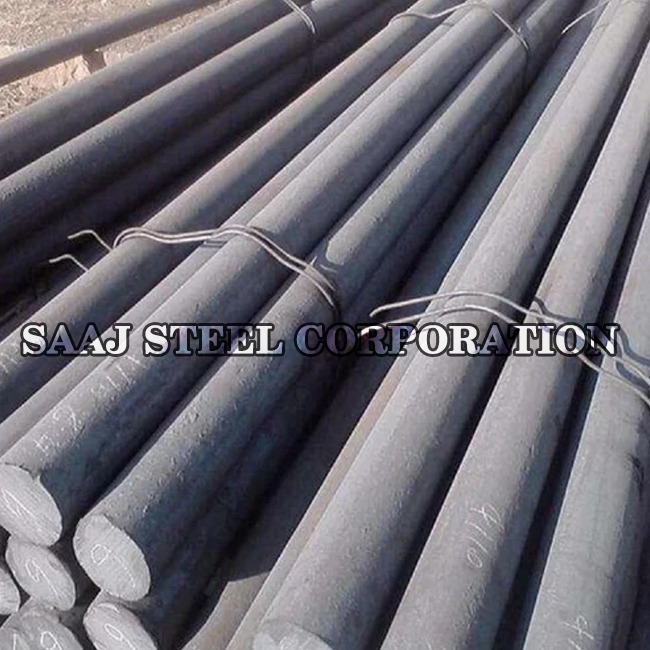

Forged Round Bars 140mm Dia to 850mm
Rolled Round Bars 16mm Dia and above
Forged Flat Bars Thickness: 32mm to 510mm, Width: 65mm to 1050mm
Rolled Flat Bars Thickness: 6mm to 110mm, Width: 25mm to 510mm

Chemical Composition

The following table shows the chemical composition of C60 steel:

Grade C Mn P S Si Cr Mo Ni Cr+Mo+Ni
C60/1.0601 0.57-0.65 0.60-0.90 ≤ 0.045 ≤ 0.045 ≤ 0.4 ≤ 0.4 ≤ 0.1 ≤ 0.4 ≤ 0.63
C60E/1.1221 0.57-0.65 0.60-0.90 ≤ 0.03 ≤ 0.035 ≤ 0.4 ≤ 0.4 ≤ 0.1 ≤ 0.4 ≤ 0.63
C60R/1.1223 0.57-0.65 0.60-0.90 ≤ 0.03 0.02-0.04 ≤ 0.4 ≤ 0.4 ≤ 0.1 ≤ 0.4 ≤ 0.63

Mechanical Properties

Mechanical properties at room temperature in the quenched and tempered condition (+QT)
Diameter d mm ≤ 16 16-40 40-100
Thickness t mm < 8 8-20 20-60
Yield Strength Mpa ≥580 ≥520 ≥450
Tensile Strength Mpa 850-1000 800-950 750-900
Elongation, % ≥11 ≥13 ≥14
Reduction of area ,% ≥25 ≥30 ≥35
Mechanical properties at room temperature in the normalized condition (+N)
Diameter d mm ≤ 16 16-100 100-250
Thickness t mm ≤ 16 16-100 100-160
Yield Strength Mpa ≥380 ≥340 ≥310
Tensile Strength Mpa ≥710 ≥670 ≥650
Elongation, % ≥10 ≥11 ≥101

Hardening

Hardening:810 – 850°C, water or oil quench

Tempering

Tempering:550 – 660°C, Cooling in air

Normalizing

820 – 880°C, Cooling in air.

Machinability

This grade of alloy is readily machined following suitable cooling from forging or subsequent heat treatment.

Density

Density 7.85 g/cm3 0.284 lb/in3

Physical Properties

Physical Properties Metric Imperial
Density 7.85 g/cm3 0.284 lb/in3

Forging Properties

C60 steel forging temperature:900 – 1100°C, cooling as slowly as possible in the sand after forged.

Annealing

680 – 710°C, Cooling in the furnace.
